AAAC Inc Power ProductsProducts

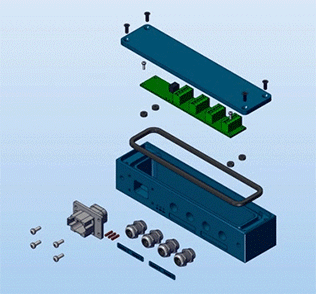

Sensor Junction Box Assembly (#101571875)Sensor Junction Box Assembly

The Applied Automation & Controls Sensor Junction box assembly is fully sealed and allows up to four sensors to be bussed in to a single cable.

The assembly contains terminal blocks for each sensor cable.  It allows the selection of sensor voltages between 5, 12 and 24V DC for individual sensors.  LED indicators are present for each power input voltage.  A removable label plate allows easy identification of the sensor connector.

The assembly is fully sealed and is available with a point of load 5V power converter option to reduce the voltage drop on long cable runs.

Both the electrical and mechanical elements of the assembly are fully RoHS compliant.

Optional CE marking & ATEX certification is also available.

Part Number:

00-92690: Sensor Junction Box Assembly with Point of Load (PoL) 5V Power converters

Technical Specifications:

Environmental Specifications
Operating Temperature:
-40C to 85C
Storage Temperature:
-55C to 125C
Thermal Shutdown:
110C
Enclosure Rating:
IP67, NEMA 6

General Specifications
Dimensions:
230 x 70 x 50 mm
Indicators:
Power Status LED
PoL Output:
5V @ 500mA
Power Input:
9-28 V @ 250mA

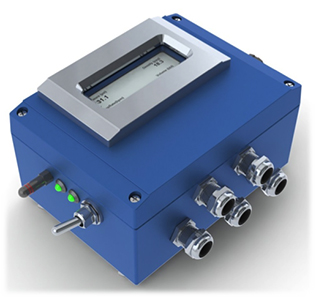

Titan Mini – IoT Data Acquisition Unit

The Titan Mini IoT data acquisition unit is a self-contained rugged and efficient oilfield data acquisition system specifically designed for well servicing operations. The unit is extremely rugged and designed for harsh environments.

Highlights

The Titan Mini is designed with the latest electronic hardware component technologies and not be in danger from obsolescence for 10 years.

The Titan Mini has been designed to bring IoT capabilities to oilfield sensors and legacy hardware. With a wide operating voltage range and versatile I/O count it allows it to completely instrument small oilfield equipment. Additionally with the high speed Ethernet, WiFi, CAN, USB and Serial ports it can be used to replace boards in the customers system, thus reducing cost and complexity.

The Titan Mini is equipped with 4 high resolution analog inputs, 4 frequency channels, and a high power control output. This enables a single Titan Mini unit to be used for small to medium equipment without requiring any slave boards etc.

Part Number: 00-93711

Technical Specifications:

Environmental Specifications
Operating Temperature:
-40C to 70C
Storage Temperature:
-40C to 90C
Enclosure Rating:
IP67, NEMA 6
Relative Humidity:
To 95%

Input Output Specifications
Power Supply:
9-28VDC, 150mA
Analog Inputs:
4 16 bit Analog Inputs configurable as mA,
V or mV (up to 2kHz)
Digital/Frequency Input
4 x up to 50kHz
Digital Outputs:
1 x 1A DC

Processor Specifications
CPU Type:
ARM
ROM Memory:
4GB Flash Memory
RAM Memory:
512MB DDR3 Memory
Data Memory:
Micro SD Card 16GB

Communication Ports and Protocols
Serial Ports:
2 x RS232
CAN Ports:
1
Ethernet Ports:
100BT or 802.11bgn
Other:
I2C, SPI, USB
Display:
LCD w/ backlight
Protocols:
TCPIP, HTTP, FTP
MODBUS, ASCII,
WITS-0, datascribe
Network-Update

Physical
Dimensions:
6.3 x 4.72 x 3.15 inch
Weight:
4.25 lbs
Material:
Aluminum

Titan Mini – IoT Data Acquisition Unit

TitanVu

TitanVu is the software application to connect directly to the AAAC DAQ hardware over Ethernet. It can also display, record and playback job data.

AAAC Systems is a provider of efficient monitoring software and hardware systems for oilfield and petrochemical applications. TitanVu is the application for reading data from all of the AAAC DAQs.

Download for free here.

Technical Specifications:

General Specifications
Current Version:
1.5.5
Requires Android:
4.4 and up

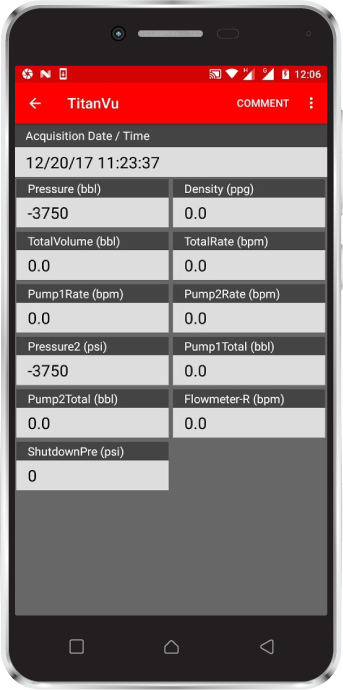

TitanVu Oilfield Monitoring Software for Android

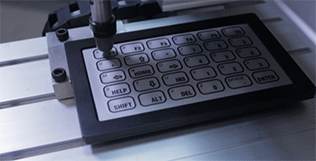

Automated Keypad Test System

The Keypad Test System by Applied Automation & Controls is a fully automatic system. The system can be used to automatically test different types of keyboards, such as mechanical, membrane, capacitive, and piezo keypads. The system can test each keypad with multiple actuation pressures and create a detailed diagnostic log of the test results.

Part Number:

00-93360: Automatic Keypad Test System

Technical Specifications:

General Specifications
Speed:
100 Keys Per Minute
Actuation Force:
0.1-30 ozs
Dimensions:
21"L x 13"W x 15"H
Computer Interface:
USB
Power Supply:
110VAC

Automated Keypad Testing

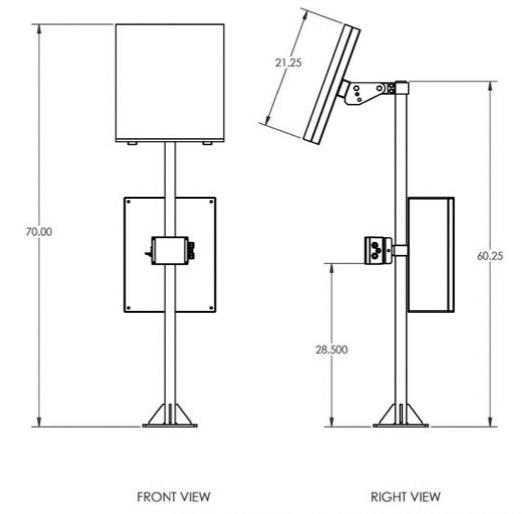

TitanSolar – Solar Charged DC Supply System

The TitanSolar is a solar charge power system for use in locations with unreliable power. The unit is extremely rugged and designed for harsh environments.

Highlights

The TitanSolar is has been specifically design for a long service life without any need for maintenance or battery replacement. The unit can be used as a primary power system for low power applications or a backup power source for high power applications. Long maintenance free operation and high MMTBF is achieved by using high quality monocrystalline solar cells and high pressure long life sealed batteries.

Analog voltage monitoring is standard while digital (SPPI) based voltage monitoring and control is available as an option. Output voltages from 5 to 24 V are available as standard configurations.

Technical Specifications:

Physical & Environmental Specifications
Dimensions:
70 x 20 x 19 inch
Operating Temperature:
-20C to 60C
Storage Temperature:
-40C to 90C
Enclosure Rating:
IP67, NEMA 6
Relative Humidity:
To 95%

Electrical Specifications
Power In:
9-36VDC, 4600mA or 200W solar panel
Power Out:
244VDC, 4170mmA
Backup Capacity:
1.22 to 16 Ah
Battery Specs:
10+yrs float life @25C avg
5+yrs float life @35C avg
500cycle @ 80% disch
2500cycle @ 30% disch
high pressure cells
Voltage Monitoring:
LED Indication
Analog out stanndard
SPI Optional

Part Number: 00-93652
  TitanSolar Oilfield Solar Power System

Custom DC to DC Power Supply Design and ManufacturerDC to DC Power Supply

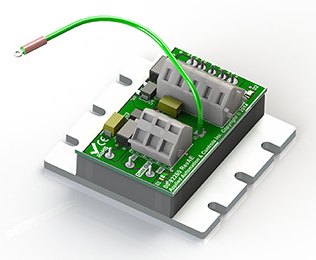

Wide Input Power Supplies

The Applied Automation & Control Wide Input Power Supplies are RoHS compliant self-contained modular power module.  All modules in this series are RoHS compliant and CE marked.

Other features include spring clamp wire terminals, LEDs for power indication, and surge suppression.

Voltage Output & Power Rating:

00-92250 5V Output 50W
0092251 12V Output 50W
00-92252 15V Output 50W
00-92253 24V Output 50W
00-92254 48V Output 50W



Technical Specifications:

Environmental Specifications
Operating Temperature:
-40C to 100C
Storage Temperature:
-55C to 125C
Thermal Shutdown:
110C
Enclosure Rating:
IP67, NEMA 6
Relative Humidity:
To 95%

General Specifications
Efficiency:
91%
MTBF (MIL-HDBK-217F):
380kHrs
Indicators:
LED x 2
Surge Protection:
Input & Output TVS
Serialization:
Each unit Serialized
Dimensions:
60 x 58 x 32 mm

Input Output Specifications
Input Voltage:
9-36VDC, 24V Nom
Current Limit:
150% of Nominal
Power Rating:
50W
Switch Frequency
350kHz
Output Ripple
< 0.3% pk-pk







Ruggedized Zigbee Module

The Applied Automation & Controls ruggedized Zigbee modules are compact units in sealed aluminum housings. The module is available in a potted and a conformal coated version. Both version fully sealed and include a Zigbee module, carrier board, power supply and serial port line drivers. The modules have an integral RP-SMA antenna connector. The modules are RoHS compliant. Optional CE marking & ATEX certification is also available. AAAC Inc Ruggedized Zigbee Module

Model Numbers:

00-92601: Encapsulated housing with polyurethane cable

00-92632: Encapsulated housing with custom length polyurethane cable



Technical Specifications:

Environmental Specifications


Operating Temperature:
-40C to 85C
Storage Temperature:
-55C to 125C
Enclosure Rating:
IP67, NEMA 6
Relative Humidity:
To 95%

General Specifications

Dimensions:
89x39x39mm
Indicators:
LED x1

Antenna:

1/2 Wave RP-SMA

Frequency:

2.4 Ghz

Transmission Power:

60mW

Voltage:

10-30VDC

Current:

15mA @ 12V recv
60mA @ 12V xmit





DC UPS

Direct Current Uninterruptable Power Supplies

The Applied Automation & Controls DC-UPS Power Supplies Units are RoHS compliant self-contained modular uninterruptable power supplies.  All modules in this series are RoHS compliant and CE marked.

Other features include spring clamp wire terminals, LEDs for power input and backup operation indication.

Technical Specifications:

Environmental Specifications
Operating Temperature:
-40C to 70C
Storage Temperature:
-40C to 125C
Thermal Shutdown:
110C
Relative Humidity:
To 95%

General Specifications
Efficiency:
91%
Surge Protection:
Input & Output TVS
Serialization:
Each unit Serialized

Dimensions:

160x120x82mm

Mounting Holes:

145x83mm (M4)

Input Output Specifications

Input Voltage:

9-36VDC, 24V Nom

Output Voltage:

24V DC Nominal

Current Limit:

110% of Nominal

Fuse Limit:

5Amp

Power Rating:

100W

Switch Frequency:

350kHz

Output Ripple:

< 0.5% pk-pk

Part Numbers & Power Rating:

00-92501         24V Output    100W

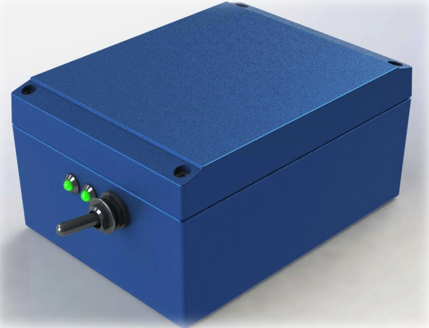

 AAAC Inc. DC UPS

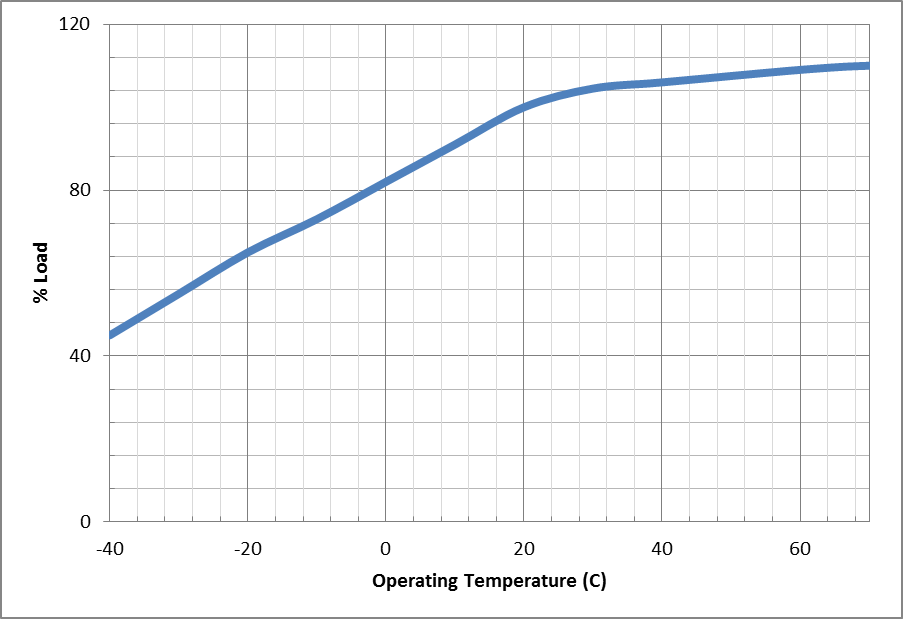

Power Derating:

Direct Current Uninterruptable Power Supplies Power Derating Chart


NextGen DAQ

Titan - Next Generation Data Acquisition Unit

The Titan sensor acquisition unit is a self-contained rugged and efficient oilfield data acquisition system specifically designed for well servicing operations.  The unit is extremely rugged and designed for harsh environments.

Highlights

The Titan is designed with the latest electronic hardware component technologies and not be in danger from obsolescence for 10 years.

The NexGEN unit has been design to be a drop in replacement for the existing hardware and is protocol compatible with the CAT software.  With a wide operating voltage range in increased I/O count it will allow for backwards compatibility while giving new applications increased capabilities.  Additionally with the high speed Ethernet, CAN and Serial ports it can be used to replace multiple boards in the customers system, thus reducing cost and complexity.

The NexGEN is equipped with 16 24-bit analog inputs, 8 frequency channels, 4 analog outputs and 8 PWM channels.  This enables a single NexGEN unit to be used to acquire data a large amount of data without requiring any slave boards etc.

The unit has been designed for future SIL certification and has the redundancy building blocks already in place.

Technical Specifications:

Environmental Specifications



 AAAC Inc NextGen Data Acquisition Unit
Titan Standard Unit
Operating Temperature:
-30C to 70C
Storage Temperature:
-40C to 90C
Enclosure Rating:
IP67, NEMA 6
Relative Humidity:
To 95%

Input Output Specifications


Power Supply:
9-36VDC, 150mA
Analog Inputs:
8 x 4-20mA 24bit
8 x 0x10V   24bit
(up to 1kHz)
Analog Outputs:
4 x 4-20mA x 16bit
Digital/Frequency Input:
8 x up to 50kHz
Depth Inputs:
2 x up to 50kHz
Digital Outputs:
6 x 1A DC PWM
2 x 4A Isolated PWM


Front View: Titan NextGen DAQ for service at 5000 psi pressure on the ocean floor.  Rear View: Titan NextGen DAQ for service at 5000 psi pressure on the ocean floor.

Processor Specifications




CPU Type:
32-bit ColdFire-V4e

CPU Speed:
250MHz

ROM Memory:
32MB Flash Memory

RAM Memory:
64MB DDR2 Memory

Data Memory:
Micro SD Card 16GB


Communication Ports and Protocols:


Serial Ports:
2 x RS232

CAN Ports :
1

Ethernet Ports:
100BaseT

Other:
I2C, SPI, USB

Display:
LCD w/ Backlight

Protocols:
TCPIP, HTTP, FTP,
MODBUS, ASCII, WITS-0,
Datascribe, Network-Update


Physical


Dimensions:
8.0 x 8.0 x 2.75 inch

Weight:
6.5 lbs

Material:
Aluminum Casting


Part Number: 00-92401

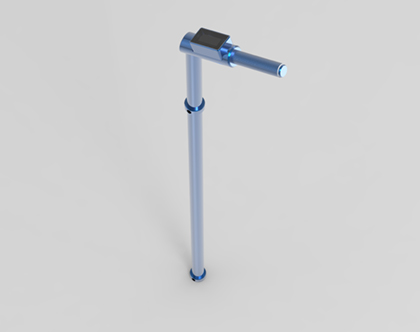

Density Stick Density Mud Stick Slurry Measuring Device

The Applied Automation & Control density mud stick is a portable battery powered density measuring device. It can measure liquid density’s ranging from 0 to 25 ppg while also measuring the temperature of mud or slurry as well.

Other features include Bluetooth data transfer and USBB port for setup and charging. The Density Stick is fully sealed and utilizes a magnetic reed start up.

Technical Specifications:

Environmental Specifications
Operating Temperature:
32°F to 140°F
Storage Temperature:
32°F to 140°F

General Specifications
Density & Temperature Output Units:
ppg / deg F
Indicators:
LED x 2
Dimensions:
53.5 in x 2.5 in
Battery Voltage:
3.7 volts
Communications:
Bluetooth & USB
